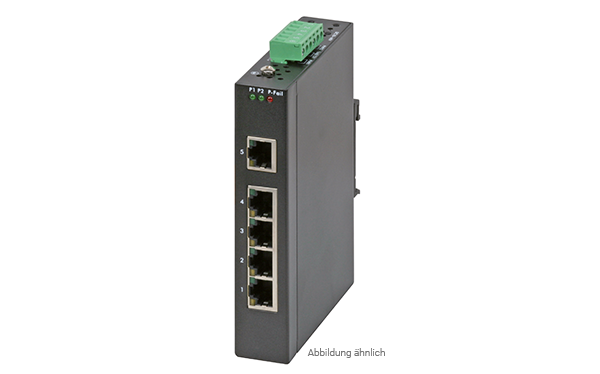

EC 5TX PoE Injektor

Der EC 5TX PoE Injektor ist ein 5-Port-Switch (4 davon mit PoE Injektor-Funktion) für Netzwerke in industriellen Umgebungen. Hutschienen- oder Wandmontage ist möglich.

Typ	EC 5TX PoE Injektor
IEEE Standard	IEEE802.3 10Base-T Ethernet / IEEE802.3u 100Base-TX Fast Ethernet IEEE802.3x Flow Control and Back Pressure / IEEE802.3af Power over Ethernet
Switch Architecture	Back-plane (Switching Fabric): 1.0Gbps Packet throughput ability (Full-Duplex): 1.488Mpps @64bytes
Transfer Rate	14,880pps for Ethernet port 148,800pps for Fast Ethernet port
Memory Buffer	448Kbits
MAC Address	2K
Connector	10/100TX: 5 x RJ-45 with auto MDI/MDI-X function; Support 4 PoE injector function
PoE pin assignment	RJ-45 port # 1~# 4 support IEEE802.3af End-point, Alternative A mode. Positive (VCC+): RJ-45 pin 1, 2. Negative (VCC-): RJ-45 pin 3, 6. Data (1,2,3,6 )
Network Cable	10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable / EIA/TIA-568 100-Ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5 cable / EIA/TIA-568 100-Ohm (100m)
Protocol	CSMA/CD
LED	Per unit: Power 1 (Green), Power 2 (Green), Fault(Red) Per port: Link/Activity (Green), Full duplex/Collision (Yellow) PoE: Feeding Power (Green)
Power Supply	DC 48V Redundant Power
Power Consumption	3.4Watts (without PoE); 57Watts (Full load with PoE)
Operating Humidity	5%~95% (Non-condensing)
Operating Temperature	Wide Operating Temperature: -40°C ~ +75°C
Storage Temperature	-40°C~85°C
Case Dimension	Metal case. IP-30, 30mm (W) x 95mm (D) x 140mm (H)
Installation	DIN Rail and Wall Mount Design
EMI	FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11, CE EN61000-6-2, CE EN61000-6-4
Safety	UL, cUL, CE/EN60950-1
Stability Testing	IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)

Typ

EC 5TX PoE Injektor

IEEE Standard

IEEE802.3 10Base-T Ethernet / IEEE802.3u 100Base-TX Fast Ethernet
IEEE802.3x Flow Control and Back Pressure / IEEE802.3af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 1.0Gbps
Packet throughput ability (Full-Duplex): 1.488Mpps @64bytes

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port

Memory Buffer

448Kbits

MAC Address

Connector

10/100TX: 5 x RJ-45 with auto MDI/MDI-X function; Support 4 PoE injector function

PoE pin assignment

RJ-45 port # 1~# 4 support IEEE802.3af End-point, Alternative A mode.
Positive (VCC+): RJ-45 pin 1, 2.
Negative (VCC-): RJ-45 pin 3, 6.
Data (1,2,3,6 )

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable / EIA/TIA-568 100-Ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5 cable / EIA/TIA-568 100-Ohm (100m)

Protocol

CSMA/CD

LED

Per unit: Power 1 (Green), Power 2 (Green), Fault(Red)
Per port: Link/Activity (Green), Full duplex/Collision (Yellow)
PoE: Feeding Power (Green)

Power Supply

DC 48V Redundant Power

Power Consumption

3.4Watts (without PoE); 57Watts (Full load with PoE)

Operating Humidity

5%~95% (Non-condensing)

Operating
Temperature

Wide Operating Temperature: -40°C ~ +75°C

Storage Temperature

-40°C~85°C

Case Dimension

Metal case. IP-30, 30mm (W) x 95mm (D) x 140mm (H)

Installation

DIN Rail and Wall Mount Design

EMI

FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT),
CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11,
CE EN61000-6-2, CE EN61000-6-4

Safety

UL, cUL, CE/EN60950-1

Stability Testing

IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)
