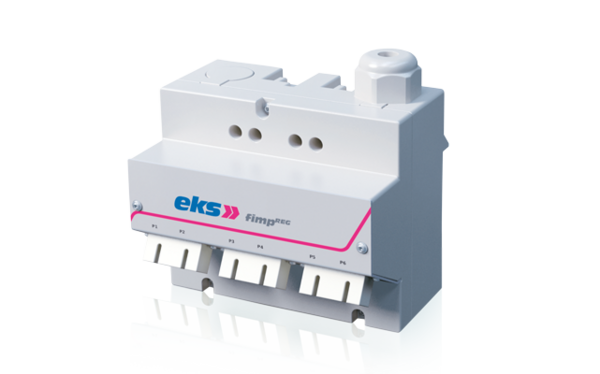

The FIMP-REG

The industrial splice box FIMP-REG according to DIN 43880 is by far smaller that comparable 19"solutions. Its inner values are really convincing as well so that the installation is quite simple and done very fast. FIMP-REG is ready for splicing and contains splice tray, couplings, pigtails and cable gland. Regarding different couplings, you can choose from ST, SC and LC.

The front panel and the splice cassette can be removed for splicing and since the cassette is magnetizable, it can easily be fixed onto a splice unit. The cassette has got a hole for splice units with a bolt.

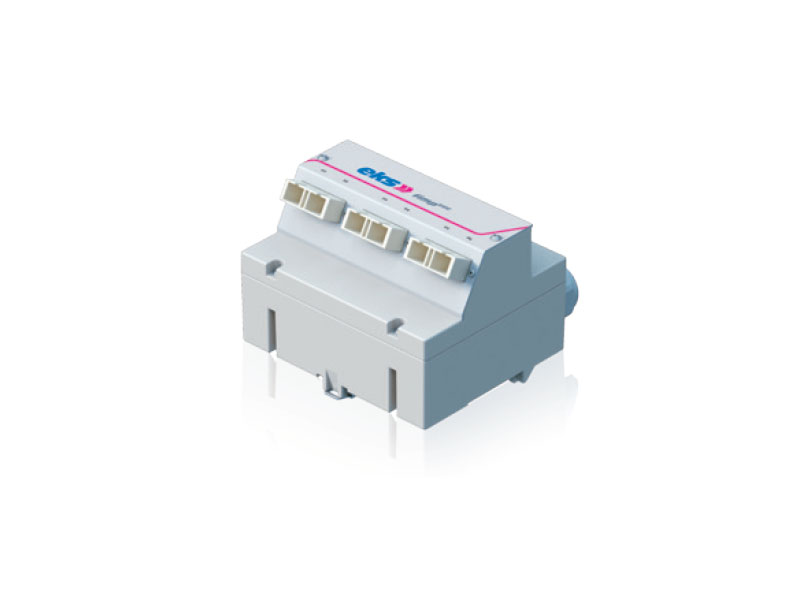

The polyamide housing of FIMP-REG has got a clip for DIN rail mounting (35mm). Thus, the user can flexibly mount the device in either switch cabinets or distribution boards.

Splicebox according to DIN 43880

Need help?

Feel free to ask us, we are here to help you with any question you may have.

Phone: +49 2762 9313-600

Contact us!
Type MM 3xST
Duplex
62MM
3xSC
Duplex
62MM
2xLC
Quattro
62MM
3xST
Duplex
50MM
3xSC
Duplex
50MM
2xLC
Quattro
50MM
Article no. 06400
22193-00
06400
22393-00
06400
22492-00
06400
62193-00
06400
62393-00
06400
62492-00
Type SM 3xST
Duplex
3xSC
Duplex
2xLC
Quattro

Article no. 06400
36193-00
06400
36393-00
06400
36492-00

Weight 220 g

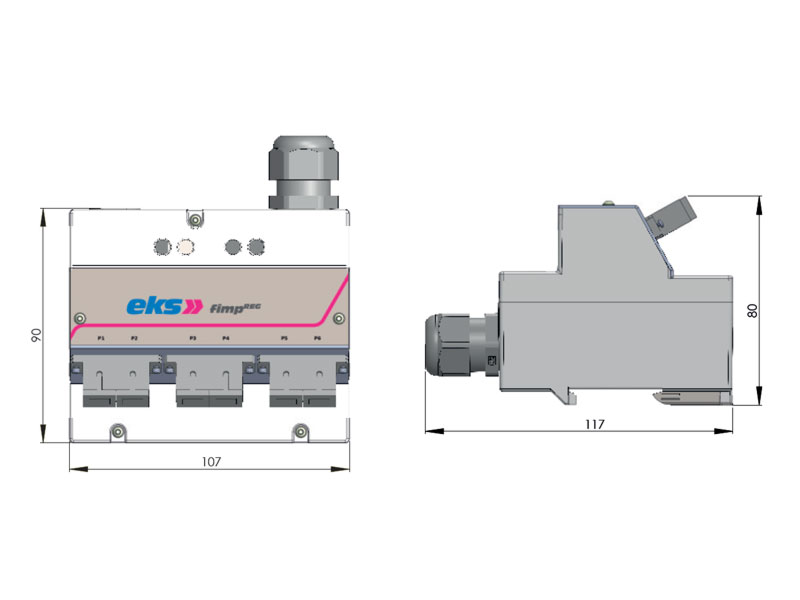

Dimensions Height: 90 mm; Width: 107 mm; Depth: 80 mm
Modules 6
Operating Temperature –20 °C – +60 °C
Humidity 10 % – 95 % relative, non condensing
Housing Polyamide, GRILON TS V0
Accessories Article no. Description
  1060000001 Cable gland M20
  1060000002 Nut M20
  1060000013 Strain relief
  1060000022 Splice holder
  1060000023 Splice protection
  1060000008 Cable tie
