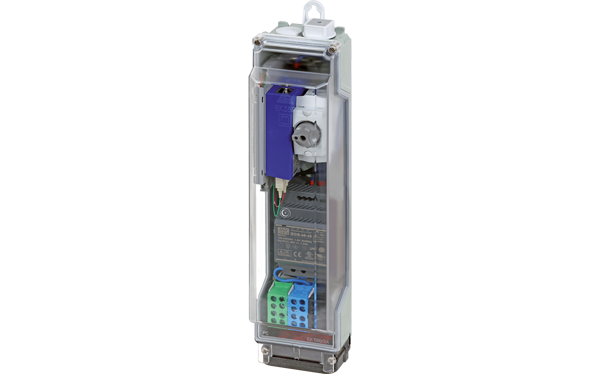

The devices of the pe-light product family are industrial grade solutions for the installation in light masts made of steel with the following standard:

DIN EN 40-5 Requirements for steel lighting columns
DIN 49778 Lighting columns, brackets with sliding nuts for mounting of devices

The pe-light is installed in a lantern mast with an inside diameter of 100 mm and a door section of 400 x 85 mm.
pe-light is available as a passive version with a splice cassette only or with active ethernet mediaconverters e-light-100-XS, e-light-100-XSP, e-light-1000-XSG or e-light-1000-XSGP. These devices have a connector for optical fiber. The device can be equipped with a variety of transceivers for singlemode or multimode. All transceivers have SC-connectors.

Mast box
